IMPORTANT NOTE: This kit will work on vehicles with a Key Start ignition only.

Installation Time: 30-45 minutes

Kit Details

• NO DEALER ACTIVATION REQUIRED
• Stage 2 Programming is NOT required (but optional if you only have one key)
• 100% Plug & Play for operation
• 1 optional wire to connect for parking light illumination
• 30-45 minute Install
• Range is the same as your OEM Key FOB
• Complete Kit - nothing else needed
• Compatible with our Add-On Long Range Remote Kit
• Compatible with our Add-On App Module
• Remote Start functionality is activated by press the appropriate button sequence on the factory key fob

Requirements & Compatibility

• 2009 2010 Ford F-150
• Automatic transmission only
• Compatible with key start ignition
• Requires two factory keys for module programming
• If you only have one key, we can complete the programming with our Stage 2 Programming method
• If you only have one key, we have an optional programming method: Click here for more information.

Operation of System

X3L KIT - (Horn Honk)

• To Start: Press Lock button 3 times on factory key FOB
• To Stop: Press Lock button 3 times again while engine is on
• Parking Lights will illuminate during remote start mode
• Run Time is 15 minutes
• All doors, and hood must be closed
• Horn will honk when activating remote start (go try pressing lock 3 times on your FOB - its a current Ford feature)

LUL KIT - (No Horn Honk)

• To Start: Press the button sequence Lock Unlock Lock on factory key FOB
• To Stop: Press the same button sequence again while engine is on
• Parking Lights will illuminate during remote start mode
• Run Time is 15 minutes
• All doors, and hood must be closed
• Horn will NOT honk when activating remote start

Special Notes

• Please note that we offer 2 variations of this kit, X3L (horn honk) and a LUL (no horn honk). Functionality is the exact same for both kits, however the activation button sequence is different between the two (see above)

• Climate settings are automatically set to "Last Setting". This means that where ever you left the climate controls when you exited the vehicle is what will kick on when you activate remote start


• Parking light wire connection is optional and not required.

• If using our Long Range Remote Kit or our App Module, 2 wires will need to be connected for the lock/unlock to work from our remotes or app module

Remote Start Kit Options and Range

Standard Kit

Remote Start works by pressing the lock button 3 times on your OEM key FOB. Range is the same as your OEM Key

Long Range Remotes

Remote Start, Lock, and Unlock your vehicle with our 1-button remote. This Remote Kit includes one 2-way remote with audible and visual feedback, and one 1-way remote. Range is up to 1 mile, depending on surroundings/environment. Click here for more info about or LRR-F Remote Kit

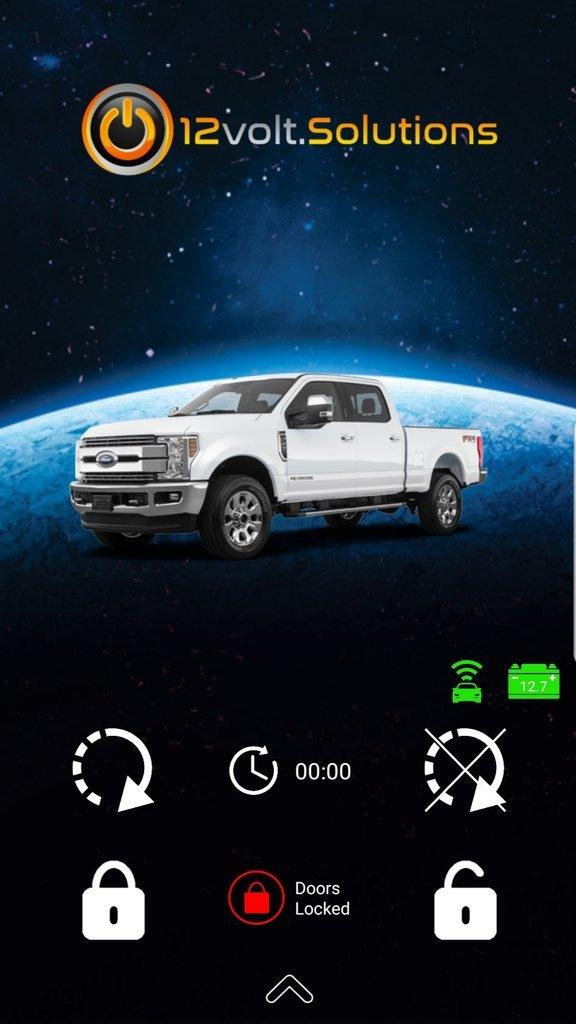

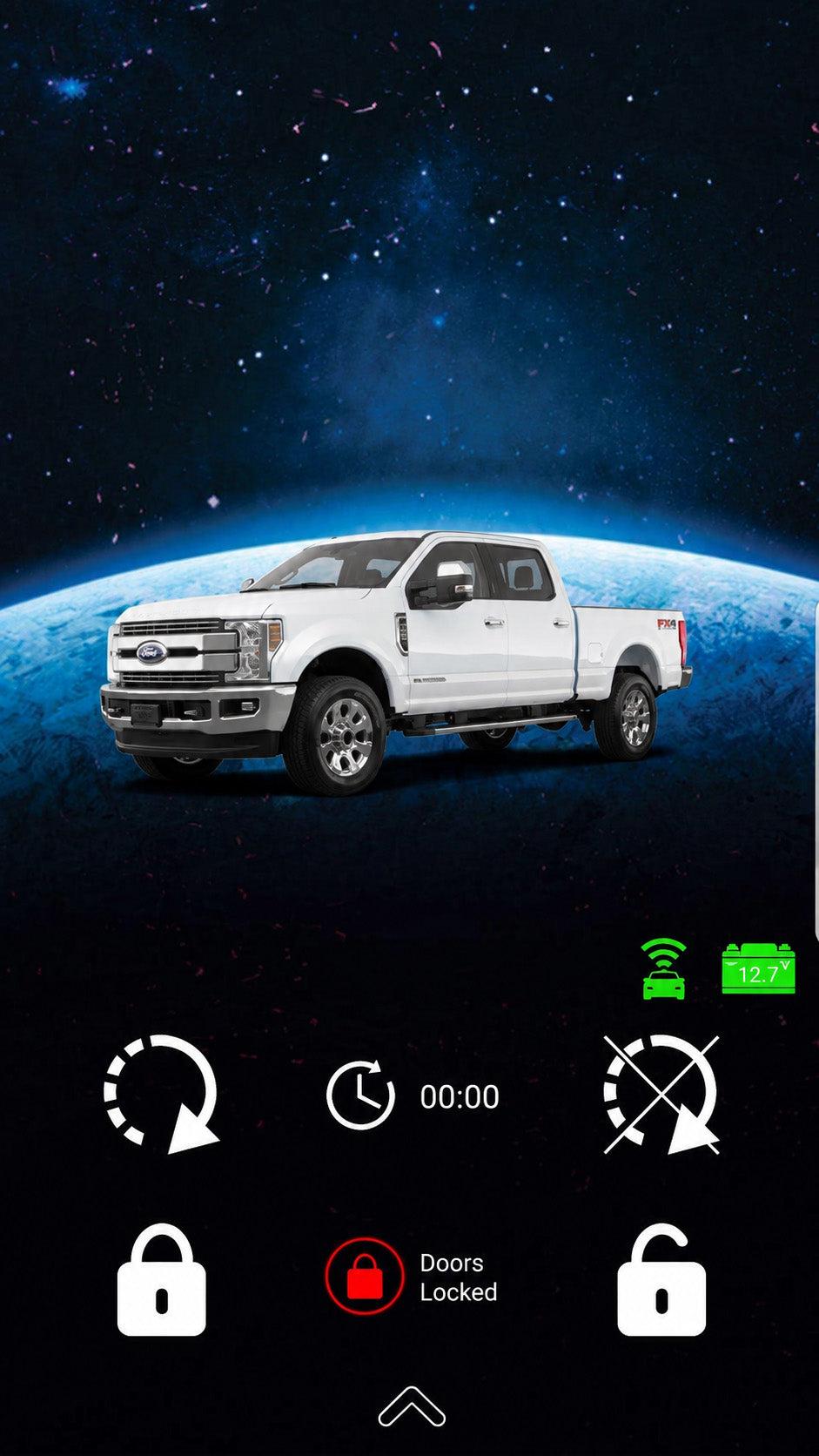

App Module

Remote Start, Lock, Unlock, Trunk Pop(if supported by firmware), GPS locate, Run Time display, and more. Range is Unlimited. Click here for more info about the App Module

X3L Kit and LUL Kit Explained

These two kits offer the exact same functionality and features. Both Kits use the same module, wiring harness and programming method. The ONLY difference between the two kits is the button sequence you press on your OEM Key FOB (see "Operation of System" above. Both Kits are compatible with our Long Range Remotes and our App Module.
