2013 Ford Fusion Remote Start Plug and Play Kit

IMPORTANT NOTE: This kit will work on vehicles with a Key Start and Push Button Start Ignition System.

No cutting, No Splicing, No Bull$%!#

This is the best and most complete kit on the market, PERIOD! With thousands of units sold, we can proudly stand behind that statement! This kit is SO EASY that one of our techs installed it on an F-250 at a red traffic light!! Watch the video HERE

Installation Time: 10 minutes

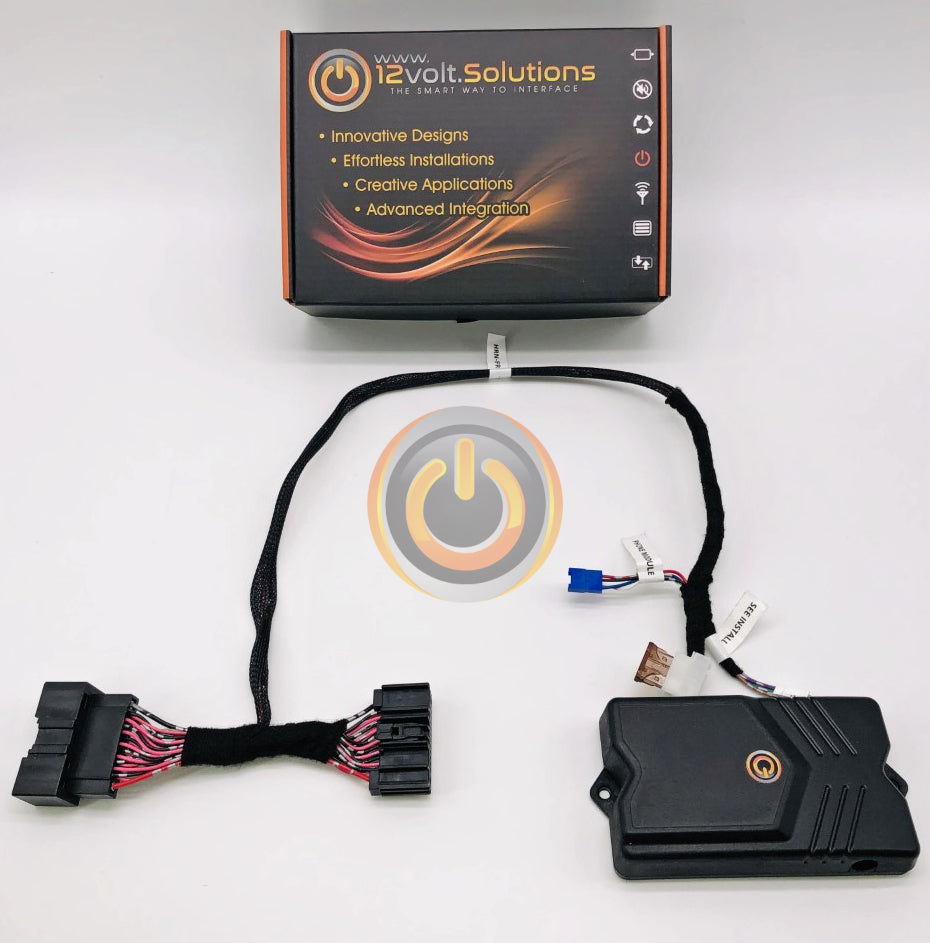

Kit Details

• NO DEALER ACTIVATION REQUIRED
• No Stage 2 Programming required
• 100% Plug & Play
• 10 minute Install
• Range is the same as your OEM Key FOB
• Complete Kit - nothing else needed
• Compatible with our Add-On 2-way Long Range Remote Kit
• Compatible with our Add-On App Module
• Remote Start functionality is activated by press the appropriate button sequence on the factory key fob
• LOCK AND UNLOCK will NOT function when using our App Module or Long Range Remote Kit.   This is restriction of the vehicle, and not the remote start.

Requirements & Compatibility

• 2013 Ford Fusion
• Automatic transmission only
• Compatible with Gas & Hybrid models
• Compatible with key start ignition
• Compatible with push button start ignition
• Must have factory hood pin enabled. To test this, open your hood and turn the ignition on. The instrument cluster will display "hood open" if equipped

Operation of System

X3L KIT - (Horn Honk)

• To Start: Press Lock button 3 times on factory key FOB
• To Stop: Press Lock button 3 times again while engine is on
• Parking Lights will illuminate during remote start mode
• Run Time is 15 minutes
• All doors, and hood must be closed
• Horn will honk when activating remote start (go try pressing lock 3 times on your FOB - its a current Ford feature)

LUL KIT - (No Horn Honk)

• To Start: Press the button sequence Lock Unlock Lock on factory key FOB
• To Stop: Press the same button sequence again while engine is on
• Parking Lights will illuminate during remote start mode
• Run Time is 15 minutes
• All doors, and hood must be closed
• Horn will NOT honk when activating remote start

Special Notes

• Please note that we offer 2 variations of this kit, X3L (horn honk) and a LUL (no horn honk). Functionality is the exact same for both kits, however the activation button sequence is different between the two.

• Must have factory hood pin (if you're not sure, open your hood and turn the ignition on. The instrument cluster will display "hood open" if equipped

• Climate settings are automatically set to "Last Setting". This means that where ever you left the climate controls when you exited the vehicle is what will kick on when you activate remote start


• DURING REMOTE START MODE the climate settings are controlled by the vehicles BCM computer. Because of this, none of the interior electronics will energize during remote start mode and they will look like they are OFF - this is normal operation. Once you get in a perform take over, all electronics will turn on as normal.

• LOCK AND UNLOCK will NOT function when using our App Module or Long Range Remote Kit.   This is restriction of the vehicle, and not the remote start.

Remote Start Kit Options and Range

Standard Kit

Remote Start works by pressing the lock button 3 times on your OEM key FOB. Range is the same as your OEM Key

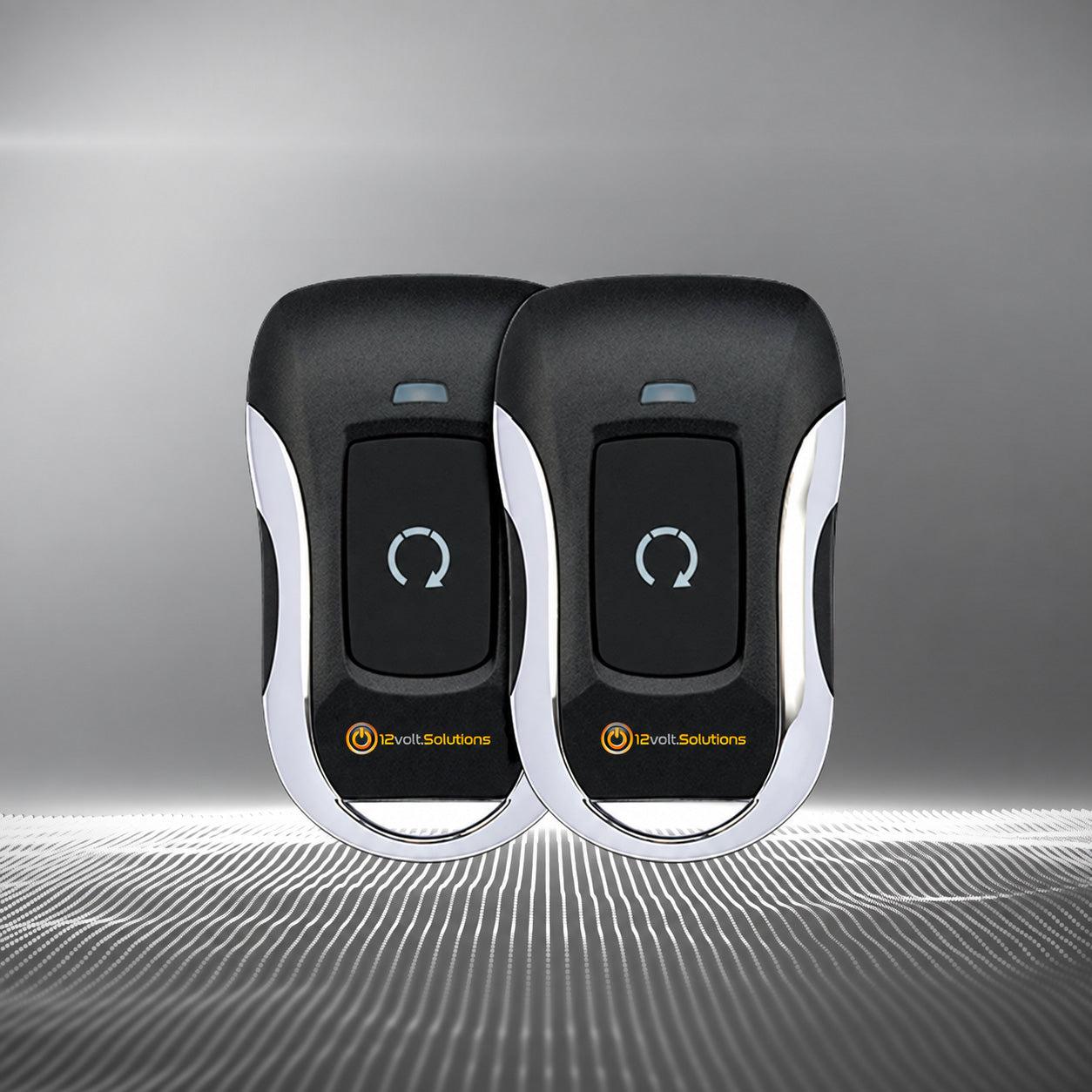

Long Range Remotes

Remote Start, Lock, and Unlock your vehicle with our 1-button remote. This Remote Kit includes one 2-way remote with audible and visual feedback, and one 1-way remote. Range is up to 1 mile, depending on surroundings/environment. Click here for more info about or LRR-P Remote Kit

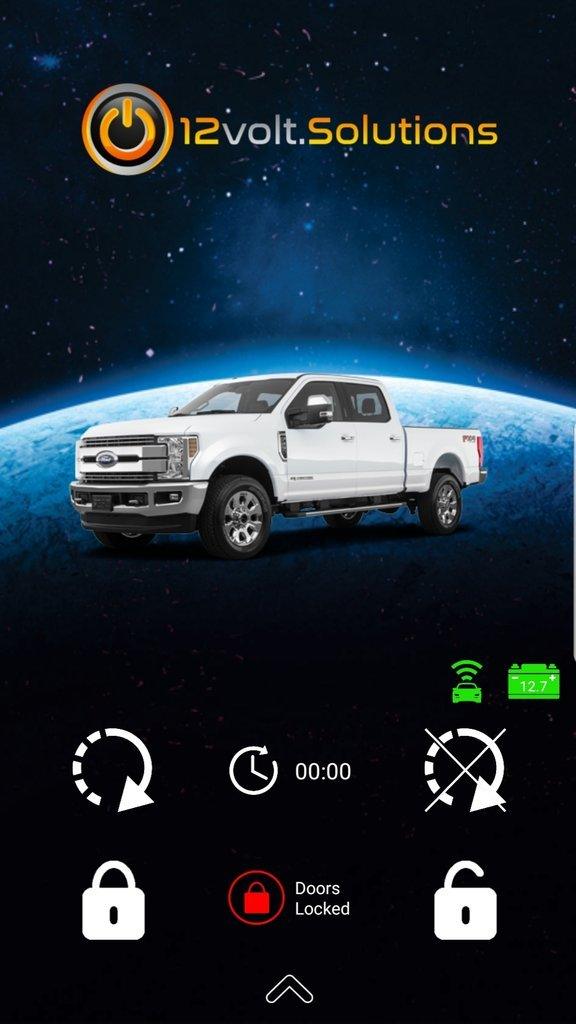

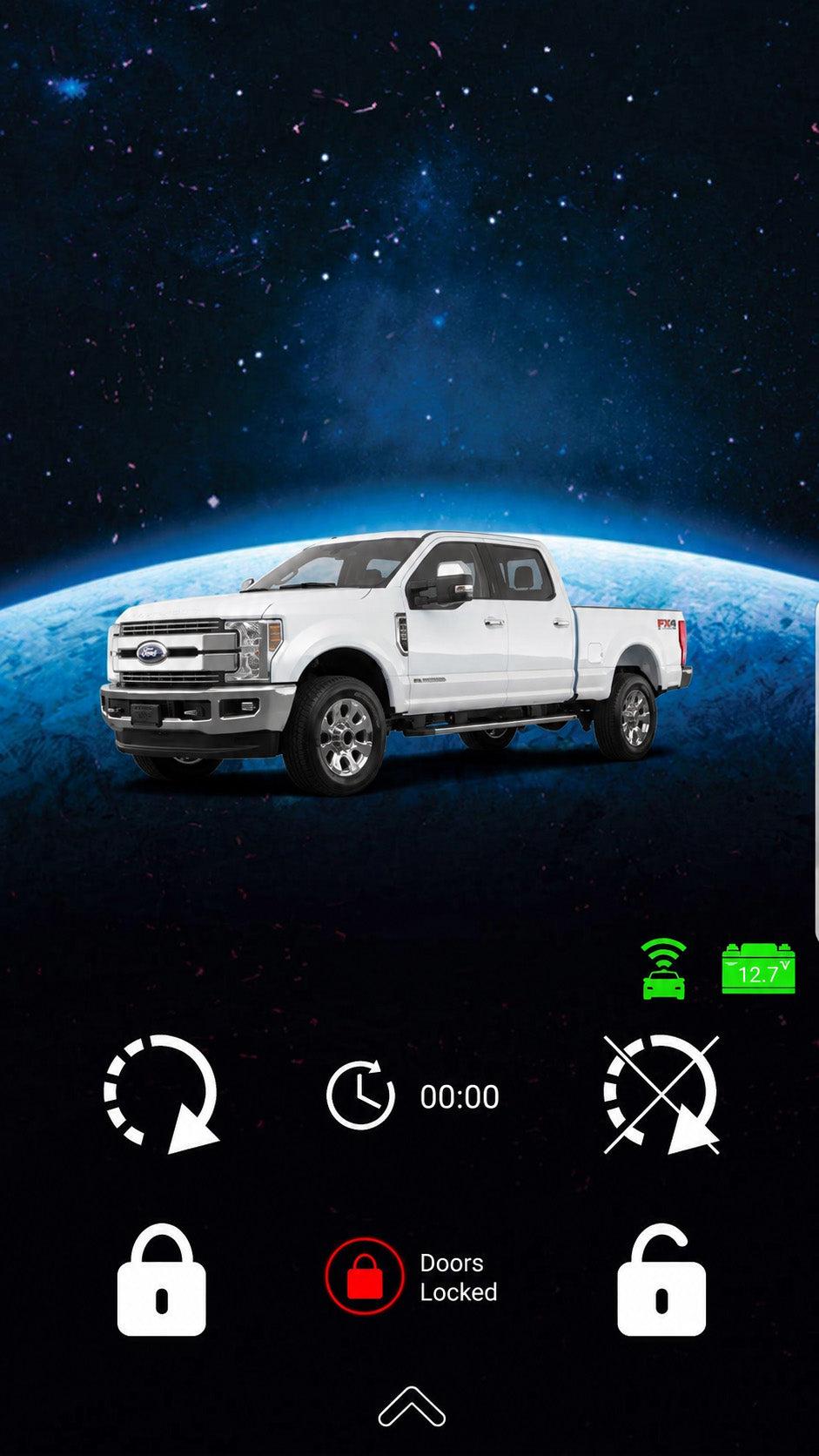

App Module

Remote Start, Lock, Unlock, Trunk Pop(if supported by firmware), GPS locate, Run Time display, and more. Range is Unlimited. Click here for more info about the App Module

X3L Kit and LUL Kit Explained

These two kits offer the exact same functionality and features. Both Kits use the same module, wiring harness and programming method. The ONLY difference between the two kits is the button sequence you press on your OEM Key FOB (see "Operation of System" above. Both Kits are compatible with our Long Range Remotes and our App Module.

Resources

2013 Ford Fusion TSB about climate controls
